Accelerate Solar is a one stop shop for saving you money on your monthly power bill and allowing you to become a more efficient consumer of electricity. We pride ourselves on our quality of work and provide custom tailored services to each client's preferences and needs.

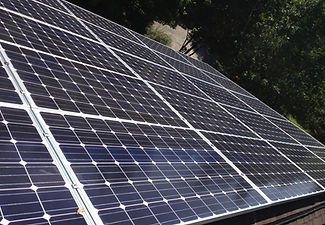

Solar panels on top of a brick house.

KINGS MOUNTAIN, NC

​7.5 kW with Radiant Barrier and Solar Attic Fan



The 7.5 kW system was designed to fit on the roof facing south and maximize the space available for the array. The system will produce over 10,000 kWh's a year and is combined with the Fronius 7.5kW IG + central inverter. Data monitoring software and the homeowner's very own weather station was included in the price, as well as radiant barrier in the attic and for the water heater, and a solar fan in the attic to keep the air circulating.



FLETCHER, NC

​4.32 kW Ground Mount System



The 4.32 kW system included a ground mount design nestled in the homeowner's yard, beside their home and garden. The project included a 6" x 6" frame with siding and finished paint that matched the residence. Accelerate Solar used MAGE 240 W AC panels, which include a built in SolarBridge inverter and carry a 30 year power guarantee warranty. Our team completed the install as promised, on time and painstakingly in the rain! We are dedicated to customer satisfaction.

Ground mounted solar panels.
Solar panels on roof.

GERMANTON, NC

​5 kW with Enphase Micro-inverters



The 5 kW design was effective in avoiding shade from the vent pipes and skylight. After the homeowner purchased their own equipment, Accelerate Solar consulted the client to the correct equipment to be used with the Enphase micro-inverters that were purchased and followed through with the installation. To the amazement of the client, our team arrived early in the morning and completed the entire array within ONE BUSINESS DAY! After installation was completed, it was a smooth transition after passing inspection and receiving the new meter from Duke Energy to complete the interconnection process.

Solar panels on a roof.

CORNEILIUS, NC

7 Solene Aurora Solar Thermal Panels



After having an existing solar thermal system that was custom designed to the home, our client decided it was time for an upgrade and Accelerate Solar made sure the homeowner was to be impressed by how far the technology has come since the original installation. Utilizing seven 4' x 8' Solene Aurora panels and replacing the roof on the side with the panels, we made sure the upgrade was going to satisfy the homeowner. This home was unique with a 500 gallon hot water exchange tank with a wood-burning fire place built in to supplement the solar thermal system. The hot water is then pumped through the floors, used for the home's hot water, and for the outdoor hot tub.

​



​



9kW Battery Backup
w/ Custom Lean-to's



This 9kW Battery Back-up system was installed with custom lean-to's to hold the solar modules. The customer now has usable space under the arrays. One building is now a chicken coop, one stores the customers 4-wheeler and snowmobile, while the third is used for storage. With clean reliable energy and storage, this customer no longer has to worry about power outages and bills from the utility! Its a great feeling to have safe, secure, and reliable energy produced cleanly from the sun!

Solar panel lean-tos.
Standing solar panels.

​PECKINGHAM FARMS

50 kW Ground Mount System



This 50kW ground mounted array saved our customer a substantial amount of money by building a custom pressure-treated 6x6 frame to hold the modules. By doing this we were able to bring the project within the customers budget, while producing the output required. A custom power shed gives the customer the ability to route the power when and where it is needed on the property.

Charlotte, NC

7.35kW Mage AC Module Array



This 7.35kW AC PV system in the South Park area of charlotte fit the roof perfectly. Accelerate Solar reinforced the roof to be able to handle the added weight of the system and supplied data monitoring along with an added meter for lifetime output data. A very cool layout we were happy to put together!

​Concord, NC

5kW  Custom Ground Mount System



This 5kW ground mounted array was built for a customer who had a system installed by another company on a heavily shaded roof facing NE. Accelerate Solar built a custom frame to hold the array in a much better location facing directly south.

Harrisburg, NC

7 kW ET AC Module Array



This 7 kW AC PV system Harrisburg, NC required tree removal to provide an adequate location for the array. Accelerate Solar cleared the space needed and constructed a custom ground mount. Data monitoring along with an added meter for lifetime output data gives the customer real time production data. A very challenging location for solar originally which we were able to make prime for solar!

Pageland, SC

12 kW with Carolina Carport Combo



This 12 kW Carolina Carport mounted array was built for a customer with sizeable energy demand to offset a significant portion of their bill. We customized the roof supports to be able to mount the racking for the solar array and we were able to tie into an existing underground electric line to avoid digging up their yard! Customer has their own meter to keep track of the lifetime generation and perfect orientation with no shading for optimal production using their new ReneSola 300 watt modules and Fronius IG+ 11.4 UNI inverter.

Charlotte, NC

7.5 kW ET AC Module Array



This 7.5 kW AC PV system in Charlotte, NC required tree removal to provide more sun hours for the array. Accelerate Solar was also able to keep the array a clean rectangle despite several vent pipes which we were able to either avoid or float over top of. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Concord, NC

7.95kW Suniva 265w Module Array



This 7.95kW Suniva/SMA PV system in Concord, NC required moving the customers 400 Amp main service over 100 feet. Accelerate Solar was able to help the customer rewire and relocate the main service of the home. Along with moving the service Accelerate Solar installed 2 brand new state of the art SMA Sunnyboy 4000 Transformerless inverters which allow the customer to draw power from outlets directly attached to the inverter in the event of a grid failure. Data monitoring along with an added meter for lifetime output data gives the customer real time production information.

Charlotte, NC

5.2 kW Mitsubishi / Solar Edge Array



This 5.2 kW PV system in Charlotte, NC required module maximizers to help protect against shading as well as to allow us to use multiple orientations. Accelerate Solar installed top of the line modules as well as a great inverter for combating shading issues. Data monitoring along with an added meter for lifetime output data gives the customer real time production information. You can see live output data HERE.

FORT MILL, SC

12 kW ALLSUN Tracker / Renesola Modules



This 12kW PV system in Fort Mill, SC was designed to get the highest energy yield possible and will produce 24,000kWh per year! Accelerate Solar installed these top of the line dual axis trackers manufactured by All Earth Renewables in the USA. These trackers follow the sun all day long and align the panels perpendicular to the suns rays for optimum output all day long with an onboard computer and gps system. Data monitoring along with an added meter for lifetime output data gives the customer real time production information. See their output statistics HERE and HERE.

GASTONIA, NC

7 kW Canadian Solar/ SMA Ground Mount



This 7 kW PV system in Gastonia, NC was groundmounted over 300ft from the home. Accelerate Solar ran power out to the location on oversized lines to allow for future expansion. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.



KANNAPOLIS, NC

8.4kW Renesola / SMA Roofmount



This 8.4 kW PV system in Kannapolis, NC included Renesola Virtus II modules and two SMA 4000TL inverters. The customer can enjoy 1500 watts of power from each inverter when the grid fails as long as the sun is shining. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Charlotte, NC

6kW Lumos SolarScape Awning



This 6kW PV system in Charlotte, NC was the only viable option to produce clean electricity from the sun for this customer. All of the roof and ground space on the property had t0o much shading for the system to make sense. So, Accelerate Solar came up with the idea to put a canopy over the driveway. This beautiful structure has glass on glass modules which let the light through as well as make up a waterproof covering. The seams between the modules were sealed up shortly after these images were taken so that the customer has a neat dry place to park their car protected from the elements!

Indian Trail, NC

7.95kW SolarWorld / SMA Roofmount



This 7.95kW PV system in Indian Trail NC included SolarWorld 270 modules and two SMA 3000TL inverters. The customer can enjoy 1500 watts of power from each inverter when the grid fails as long as the sun is shining. Data monitoring along with an added meter for lifetime output data gives the customer real time production data. The customer recieved a free upgrade to SolarWorld 270's from 255's because they 255's were out of stock! That's why you should choose Accelerate Solar!

Waxhaw, NC

5.4kW ReneSola / SMA Roofmount



This 5.4kW PV system in Waxhaw, NC included 300 watt Renesola Virtus II modules and an SMA 5000TL inverter. The customer can enjoy 1500 watts of power from the inverter when the grid fails as long as the sun is shining. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Denver, NC

9.18 kW SolarWorld / SolarEdge



This 9.18 kW PV system in Denver, NC included SolarWorld 255 modules and two SolarEdge SE-5000A-US inverters. The customer can enjoy added production in a shaded environment by use of module maximizers. Maximizers were necessary in this case due to significant tree coverage. The maximizers will greatly improve system production during shaded hours. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Stanley, NC

8.32kW JA Solar / Fronius / SunBandit



This 8.32kW PV system in Stanley, North Carolina included 260 watt JA Solar modules and a Fronius IG+ 7.5 Advanced inverter. Additionally, 6 of the modules we wired directly to the heating coils in the SunBandit solar hot water heater. This allows the customer to enjoy hot water for about $1.50 per month in utility costs. Also, the SunBandit system allows the customer to maintain hot water even when the grid fails! Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Kannapolis, NC

14.56 kW SolarWorld / Schneider / Battery Backup



This state of the art 14.56 kW Solar PV system in Kannapolis, NC included SolarWorld 260w modules, Three Schneider Conext TX Inverters, Two Schneider Conext XW 6048 Battery Backup inverters, Automatic Transfer Switch, and Sixteen Trojan L-16 370 Amp Hour batteries. This battery backup system allows the customer to operate indefinitely during a grid failure. While everyone else in the area is stuck without power, this family will be living comfortable with this system! Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Charlotte, NC

5.88kW Stion / SMA Sunnyboy TL



This 5.88kW PV system in Charlotte, North Carolina included elegant looking black on black 140 watt Stion Solar modules and a SMA Sunnyboy TL. The system needed to be designed in such a way as to please the HOA since the modules would be visible from the road. Accelerate Solar helped create mock-ups for the homeowner to pass along to the HOA and was able to get approval to install this slick looking system. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Charlotte, NC

6.44kW Sunpreme GXB 280s / SMA Sunnyboy TL



This 6.44kW PV system in Charlotte, North Carolina is a solar integrated awning. The glass on glass bifacial modules let diffused sunlight pass through giving the feel of standing under a tree with some of the sunlight passing through the leaves. Accelerate Solar helped create mockups for the homeowner to pass along to the HOA and was able to get approval to install this beatiful solar structure. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Charlotte, NC

5.4kW Solarworld / SMA Sunnyboy TL



This 5.4kW PV system in Charlotte, North Carolina included a more cosmetic black on black 270 watt Solarworld modules and a SMA Sunnyboy TL. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.

Stanley, NC

8.8kW Solarworld 275s / ABB PVI4000 Inverters



This 8.8kW PV system in Charlotte, North Carolina is a raised solar mount. This raised DPW Multi-Pole mount in Stanley NC is tall enough to comfortably walk under. Data monitoring along with an added meter for lifetime output data gives the customer real time production data.
